Analyze transformer & high voltage electrical equipment fluids

THE Chem Lab can advise the appropriate tests and test packages for your equipment and monitoring needs. We provide guidance on sampling techniques (see Seminars) as well as referrals for third party sampling service providers.

Why analyze transformer and high voltage electrical equipment fluids?

This is a powerful methodology to indicate the presence of incipient faults and determine the overall operating condition of a unit.

Baseline analyses are required upon commissioning of equipment or in the absence of recent data. Regular analyses provide trending characteristics that reveal additional information.

Scheduled sampling help make proactive decisions protecting your fleet and ensuring uninterrupted service delivery.

Tests

THE Chem Lab offers a routine testing package that has powerful diagnostic value. Our routine testing package includes:

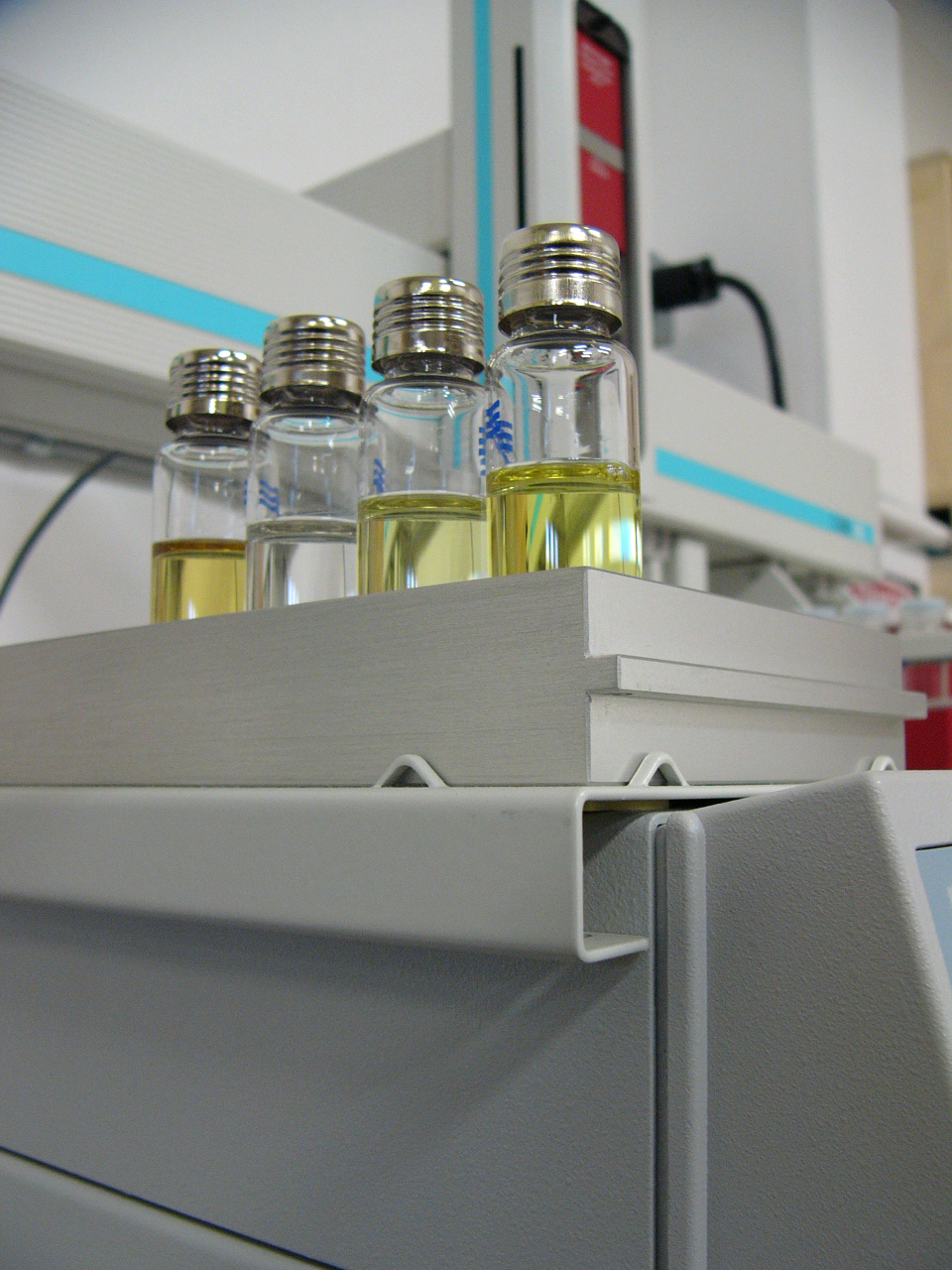

• Dissolved Gas Analysis (IEC 60567 / ASTM D3612C modified)

• Moisture Content (ASTM D1533B)

• Colour/Visual (ASTM D1500/D1524)

• Total Acid Number (ASTM D974)

• Interfacial Tension (ASTM D971)

• Dielectric Breakdown at 1mm and/or 2mm (ASTM D1816)

• Dissipation (Power) Factor at 25⁰C, 90⁰C or 100⁰C (ASTM D924)

In addition to our standard package, we offer the following in-house tests:

• Dielectric Breakdown (ASTM D877, IEC 60156)

• Specific Gravity (ASTM D4052 – High res.)

• Oxidation Inhibitor (ASTM D2668)

• Viscosity (ASTM D445)

• Corrosive Sulfur (ASTM D1275B)

• Specific Resistivity (ASTM D1169)

• Flash & Fire Point (AST D92)

THE Chem Lab also has long-standing relations with subcontracting labs, which can perform the following tests:

• Furans Analysis by HPLC (ASTM D5837)

• Metals Analysis by ICP-AES (ASTM D5185 & D7151)

• PCB Homolog Analysis by GC-MS/MS (MHL Method 3507 Reference: Env Canada RM/31)

• Particle Count by Optical Counter (ISO 1 1 500/4406)
